PV Grid-Connected Cabinet, GGD/MNS

IPKIS presents PV grid connected cabinet, a crucial part of solar systems that acts as the main connection point between a solar power station and the electrical grid.

For low-voltage solar power stations that are connected to the grid, the PV grid connected cabinet can also incorporate additional devices for functions like measurement and protection.

Request a Quote

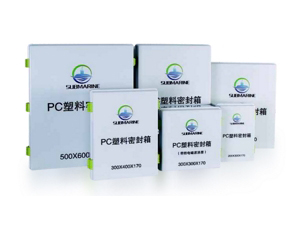

PC/ABS Plastic Enclosures

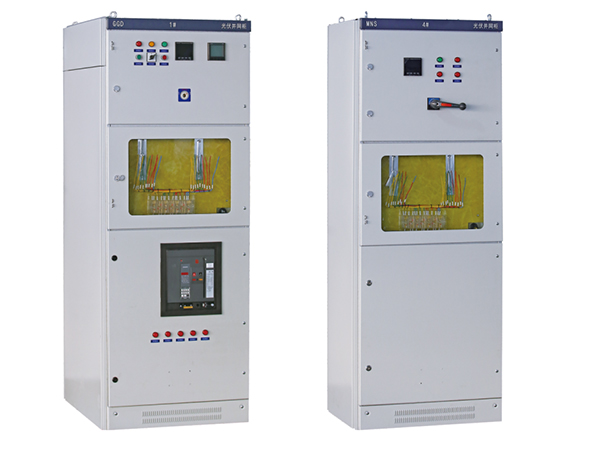

We offer two main types of PV grid connected cabinets to cater to different needs:

GGD AC low-voltage distribution cabinets are suitable for power plants, substations, and industrial enterprises. This type of distribution cabinet is applicable to AC 50Hz power systems with a rated working voltage of 380V and a rated working current of 3150A, suitable for energy conversion, distribution, and control of power, lighting, and distribution equipment.

MNS low voltage distribution cabinets find wide applications in power plants, substations, industrial and mining enterprises, hotels, and municipal construction for various low-voltage distribution systems.

Standards
  • GB 7251.1-2013 Low-Voltage Switchgear and Controlgear Assemblies—Part 1
  • GB 7251.12-2013 Low-Voltage Switchgear and Controlgear Assemblies—Part 2
  • GB 4208-2008 Degrees of Protection Provided by Enclosure
  • GB 9466.1-1997 Basic Testing Method of Low Voltage Switchgear Assembly
Features
  • Versatile Capacity Range: Our solution covers a wide capacity range, catering to grid connection needs of users below 2000A.
  • Easy Installation & Sleek Design: Enjoy the convenience of lightweight and easy installation, all packaged in an aesthetically pleasing design.
  • Enhanced Functionality: Choose from optional features like automatic circuit closure and outage protection for seamless unmanned management.
  • Clear Solar Insight: Experience clarity with the option for a separate sealed meter room, providing a comprehensive view of solar power generation.
  • Seamless Communication: Equipped with an RS485 communication interface, utilizing the ModBus-RTU communication protocol.
  • Quality Components: We offer the flexibility to integrate components from renowned domestic and international brands, tailored to your preferences.
Dimensions

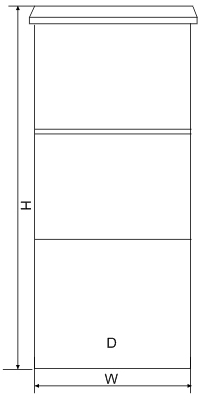

No. Dimensions (mm) Maximum Grid-Connected Power Note
W H D
1 600 2000 600 200kW Position for electricity meter reserved
2 800 2000 600 400kW
3 800 2000 800 600kW
4 800 2000 1000 800kW
5 1000 2000 1000 1000kW
Dimensions
More Power Accessories
FAQS
We specialize in providing accessories for photovoltaic systems, including PV combiner boxes, fiberglass plastic enclosures, DC fuses, solar connectors, and more.

Our photovoltaic accessories are mainly utilized in the solar energy sector, catering to solar power project contractors, manufacturers of photovoltaic distribution equipment, as well as traders in the field.

We have more than 20 years of experience in manufacturing photovoltaic distribution products.
Standard specifications are available for plastic enclosures, photovoltaic fuses, and solar connectors. On the other hand, AC/DC combiner boxes are customized based on distribution designs.
