PV Fuse Holder

PV DC fuse holders provide advanced and affordable protection for residential and commercial solar systems. Our photovoltaic fuse holders suit 1000V and 1500V DC needs. With patented dual-core design (patent number: ZL 2016 1 0673892.0) and CE/TUV certifications, these PV fuse holders integrate smoothly into solar setups. Our automatic production ensures 800,000 high-quality units yearly and 80% of automatic production, shortening lead times for bulk orders and optimizing pricing. Contact our team for swift support!

Request a Quote
PV Fuse Holder
  • PV Fuse Holder ARD-32(X)/1000
  • PV Fuse Holder ARD-32X2/1100
  • PV Fuse Holder ARD-32/1500-N
  • PV Fuse Holder ARD-32X2/1500-65
  • PV Fuse Holder ARD-32B(X)/1500
PV Fuse Holder
PV Fuse Holder PV Fuse Holder PV Fuse Holder PV Fuse Holder
Inquiry

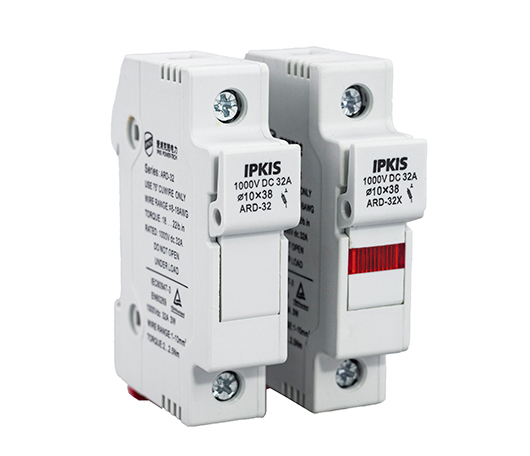

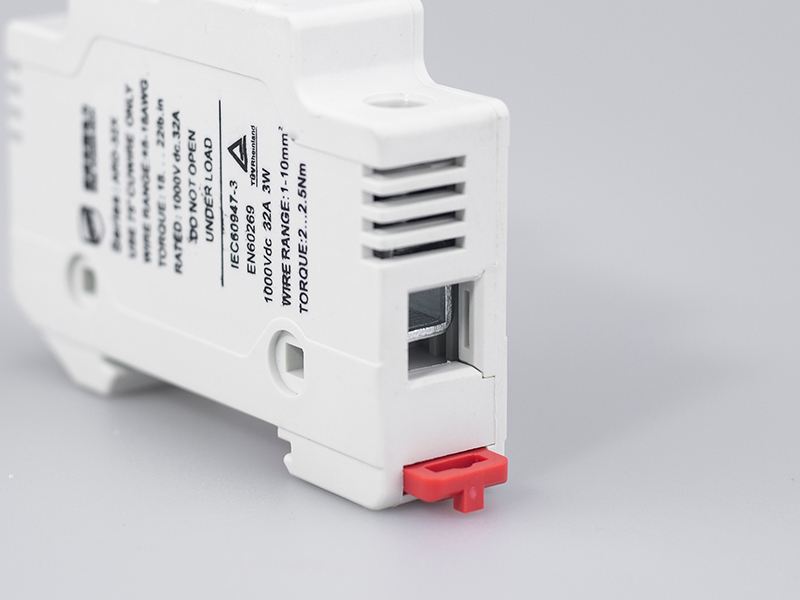

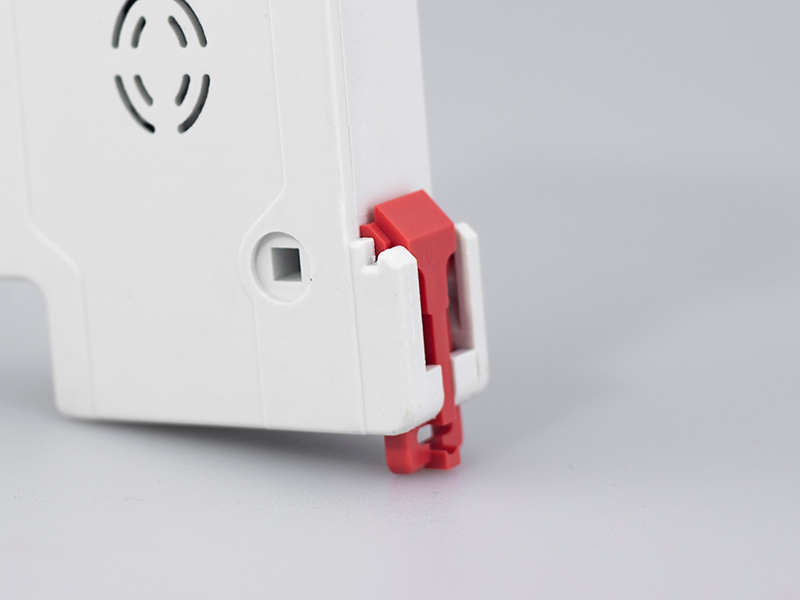

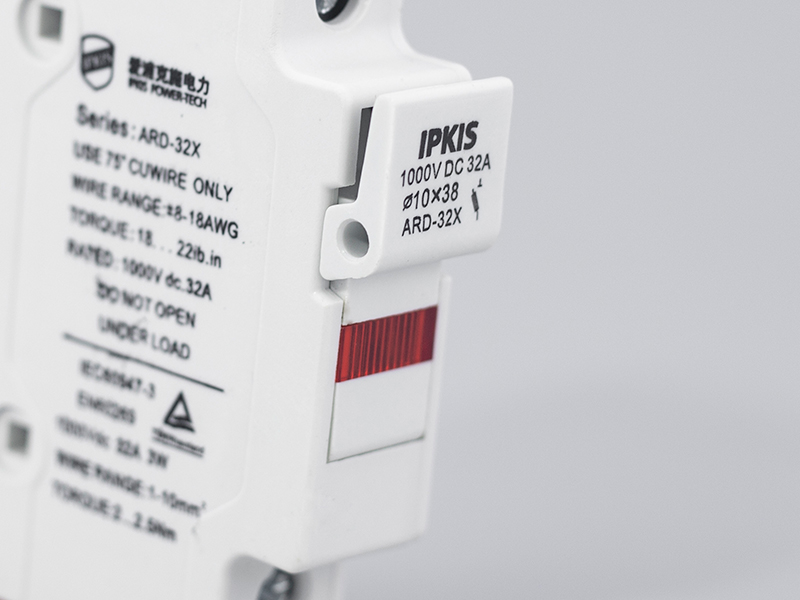

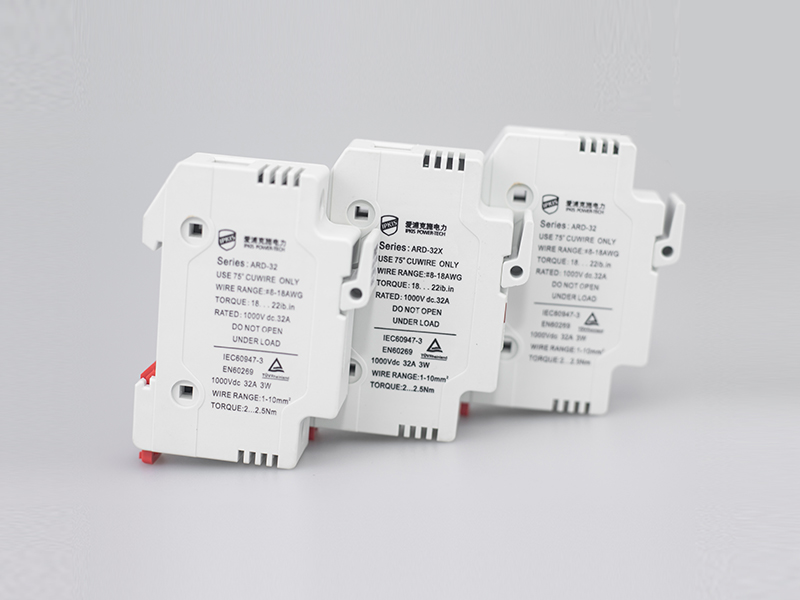

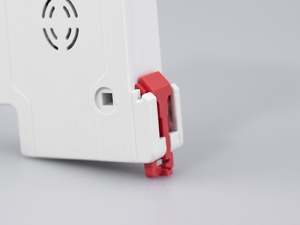

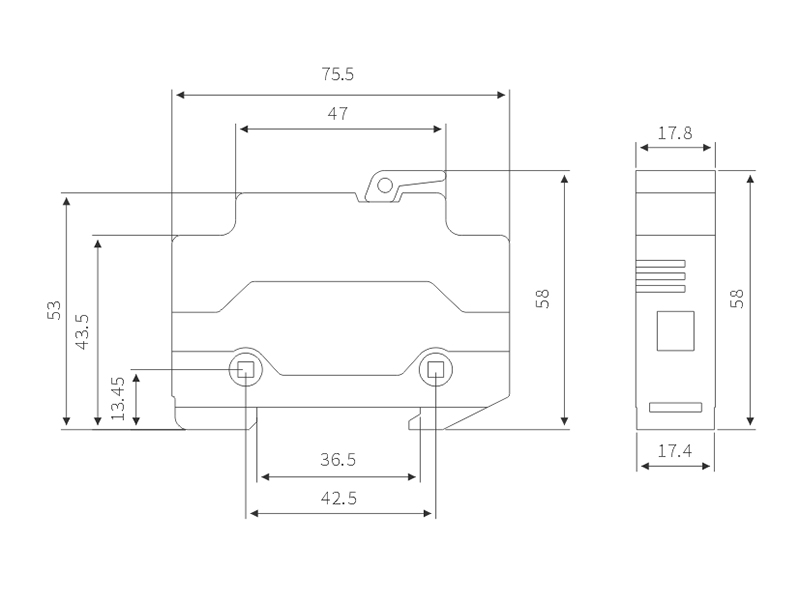

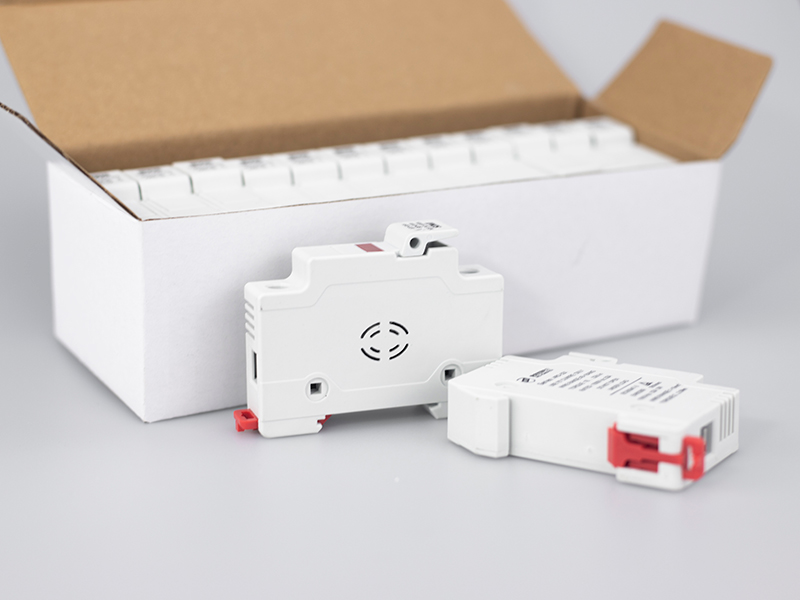

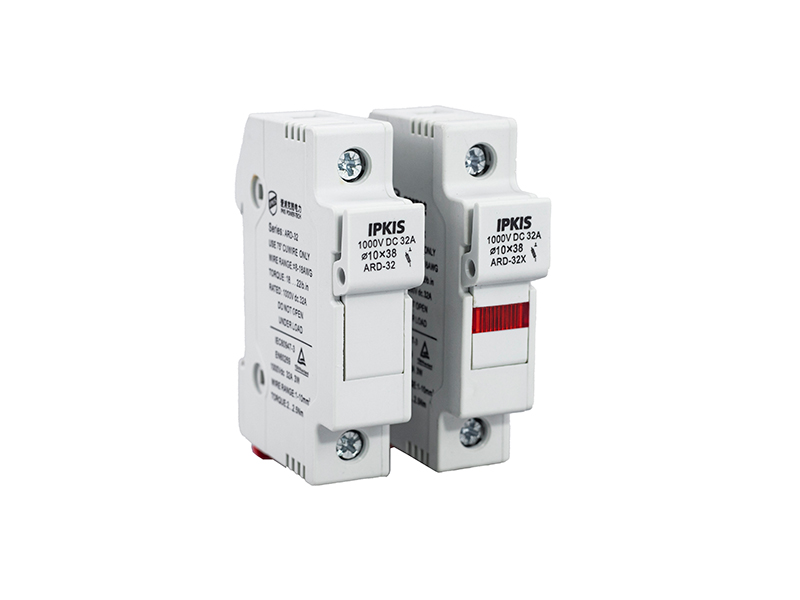

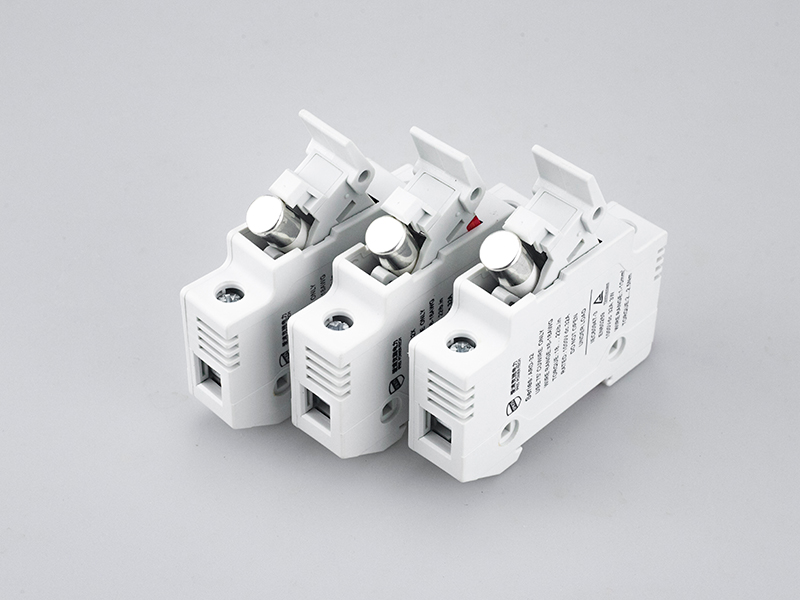

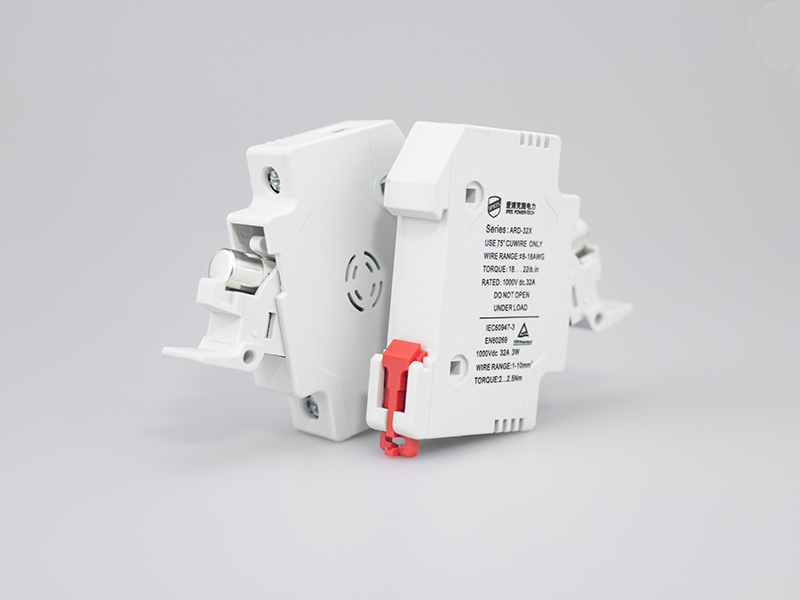

PV Fuse Holder, ARD-32(X)/1000
  • Rated Voltage: 1000V, DC
  • Rated Current: 32A
  • Compatible Fuse Size: 10*38mm
  • Protection Classification: gPV
  • Enclosure Material: PBT
  • Temperature Resistance: -40 to 120°C
  • Enclosure Flame Rating: UL94-V0
  • Installation Support: Mounting Rail
  • Mounting Rail Size: TH35
  • Terminal Screw Torque: 2.5～3N.m
  • Conductor Cross-Section: 2.5～16mm²
  • Ipk Rated Peak Withstand Current: 20kA
  • Certification: TUV, CE, RoHS
  • Protective Treatment: TH
  • Storage Temperature: -40°C to 80°C
  • Standards: GB14048, IEC60269

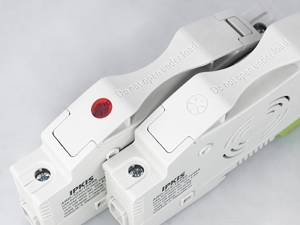

  • Optional Feature: LED Indicator
PV Fuse Holder
  • PV Fuse Holder
  • PV Fuse Holder
  • PV Fuse Holder

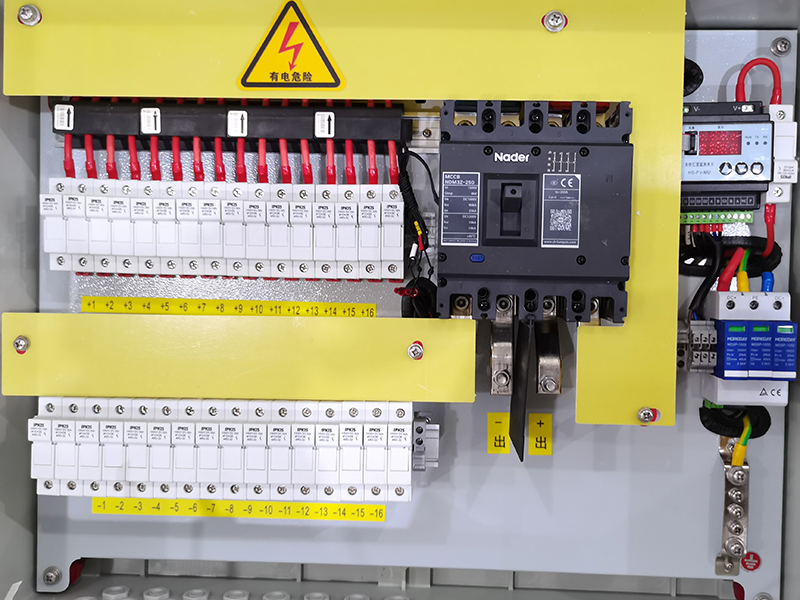

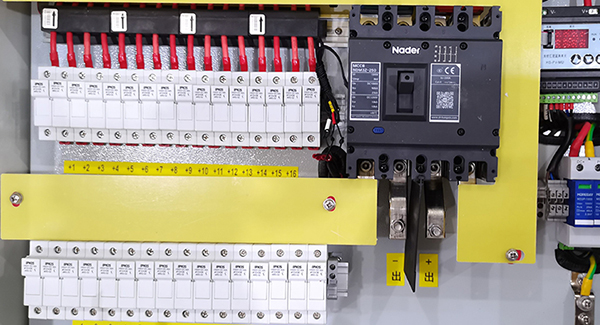

PV Fuse Holder in Operation
PV Fuse Holder
PV Fuse Holder
PV Fuse Holder PV Fuse Holder PV Fuse Holder PV Fuse Holder PV Fuse Holder
Inquiry

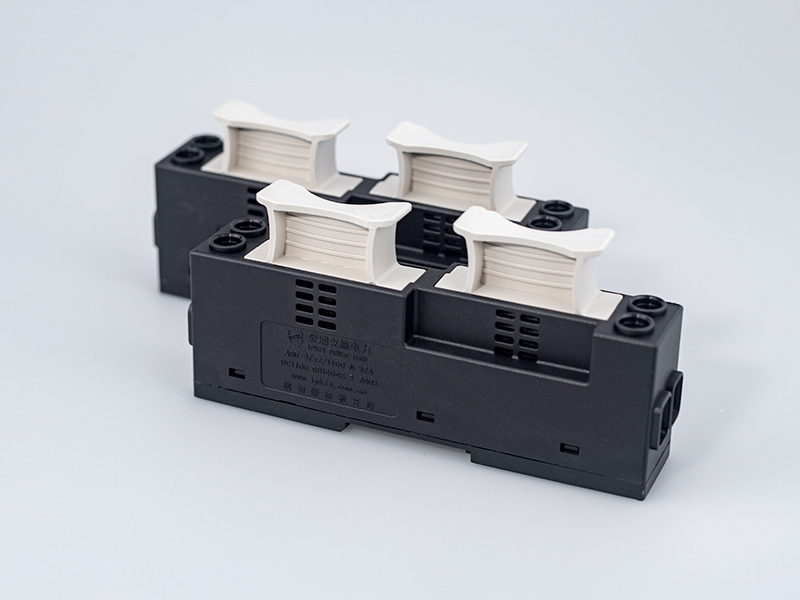

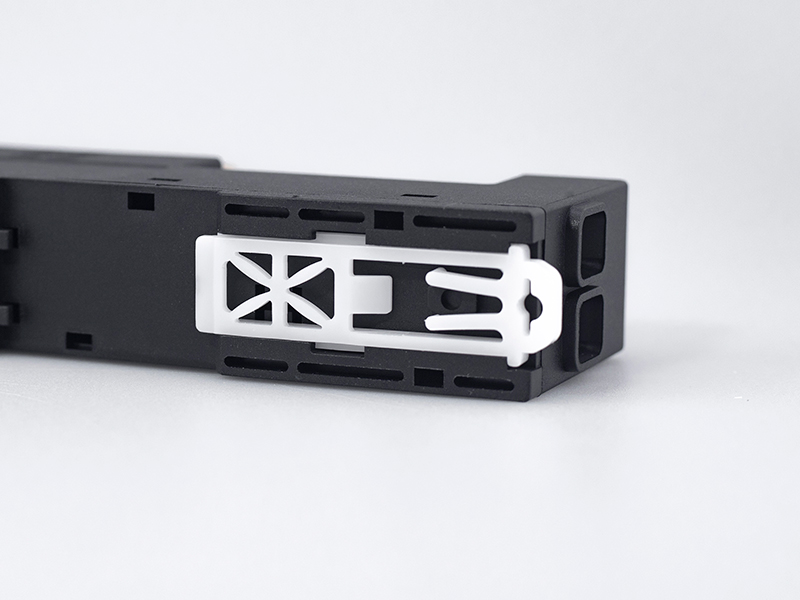

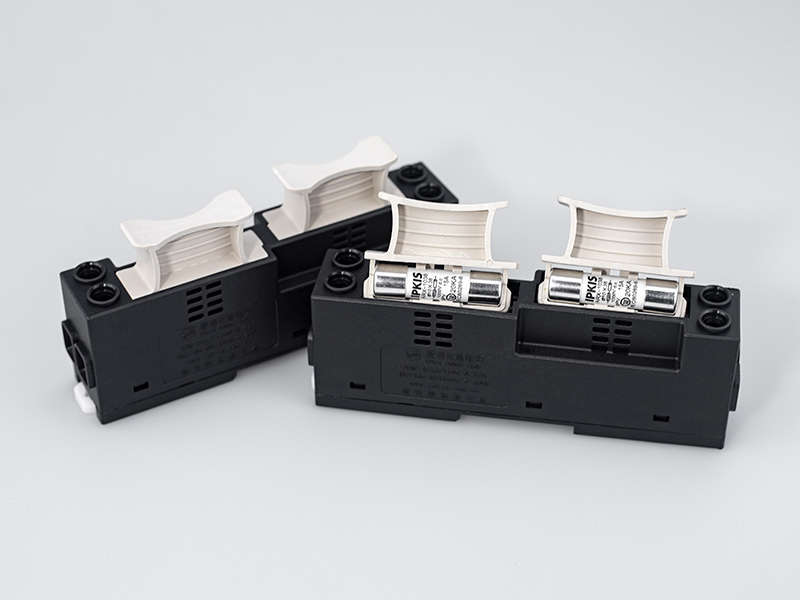

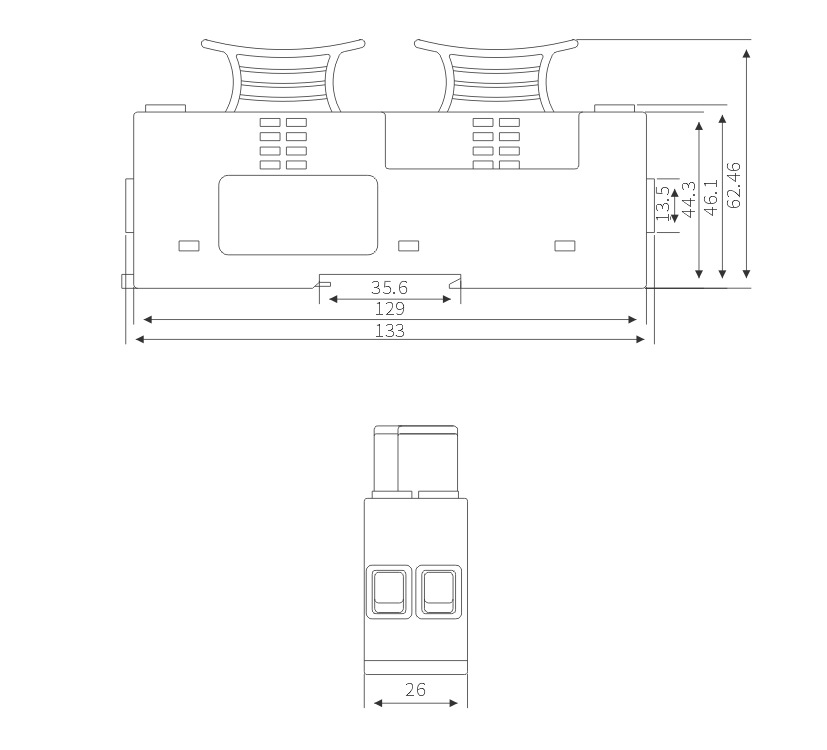

PV Fuse Holder, ARD-32X2/1100
  • Rated Voltage: 1100V, DC
  • Rated Current: 32A
  • Compatible Fuse Size: 10*38mm
  • Protection Classification: gPV
  • Enclosure Material: PA66
  • Temperature Resistance: -40 to 120°C
  • Enclosure Flame Rating: UL94-V0
  • Installation Support: Mounting Rail
  • Mounting Rail Size: TH35
  • Terminal Screw Torque: 2.5～3N.m
  • Conductor Cross-Section: 2.5～16mm²
  • Ipk Rated Peak Withstand Current: 20kA
  • Certification: TUV, CE, RoHS
  • Protective Treatment: TH
  • Storage Temperature: -40°C to 80°C
  • Standards: GB14048, IEC60269
PV Fuse Holder

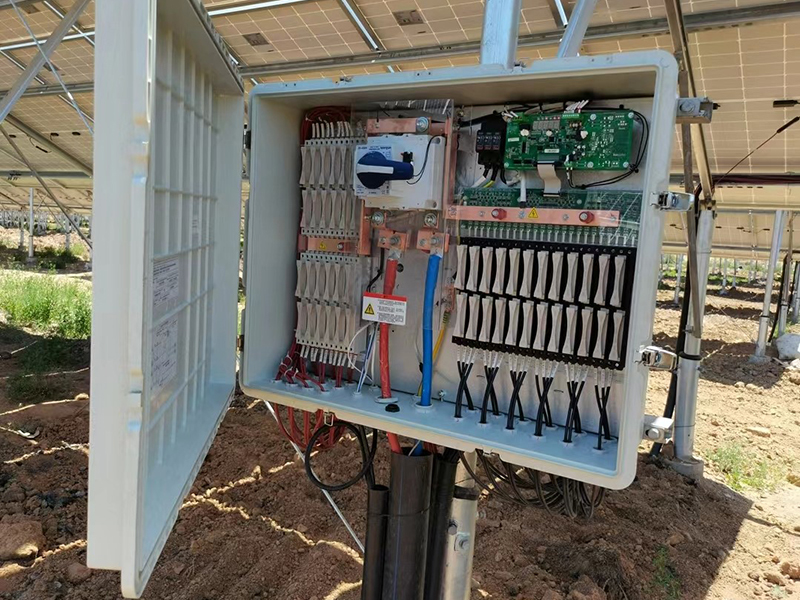

PV Fuse Holder in Operation
PV Fuse Holder
PV Fuse Holder
PV Fuse Holder PV Fuse Holder PV Fuse Holder PV Fuse Holder PV Fuse Holder
Inquiry

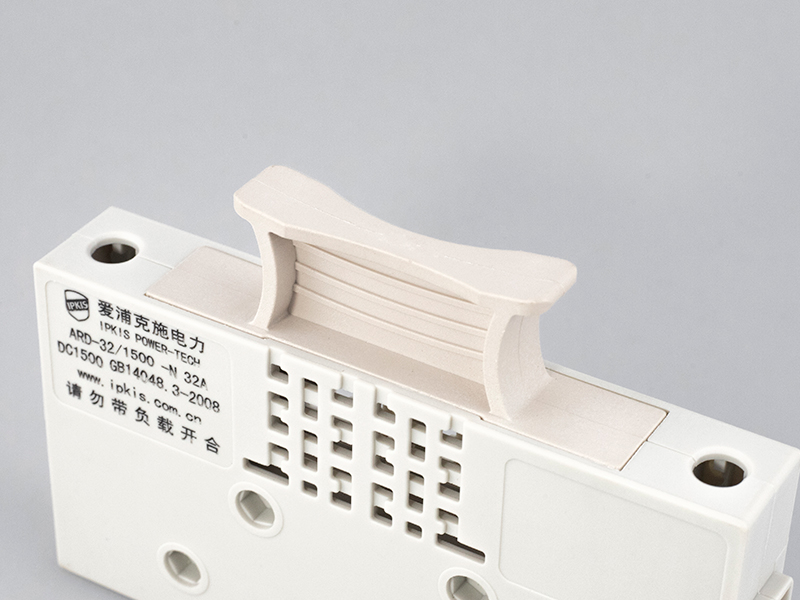

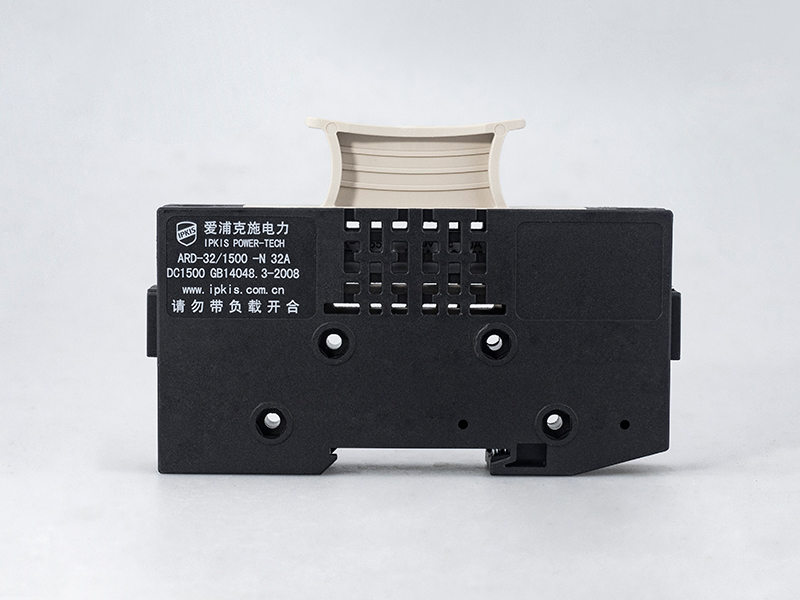

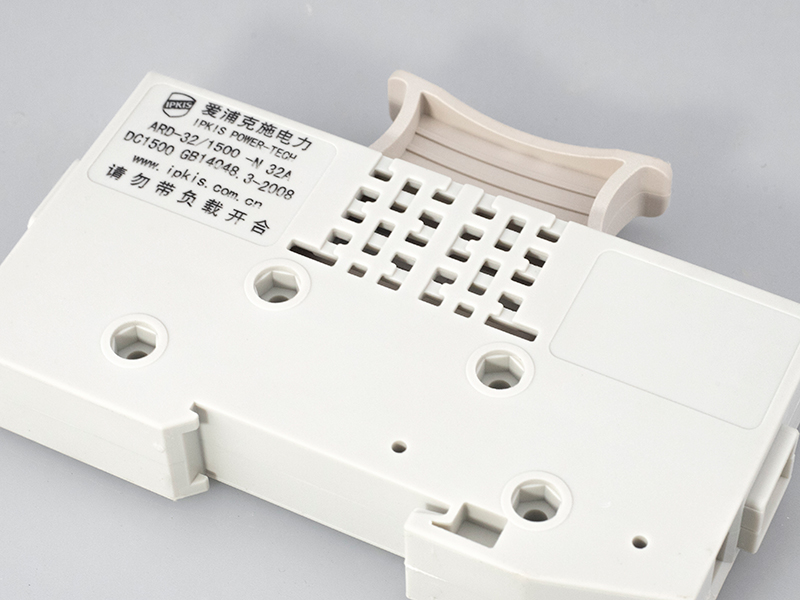

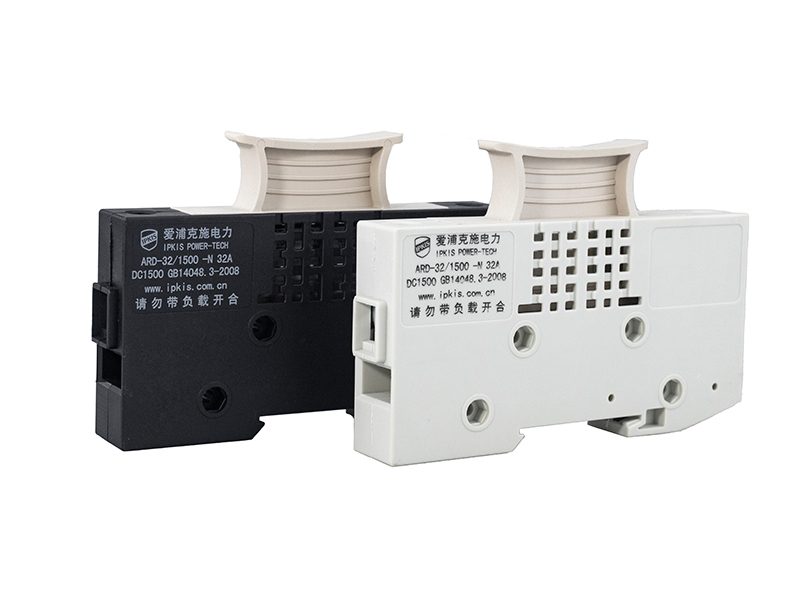

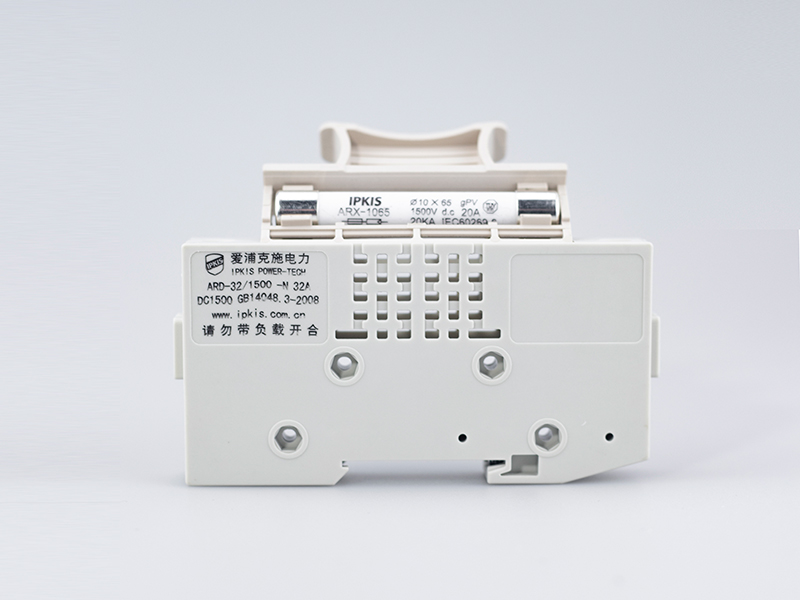

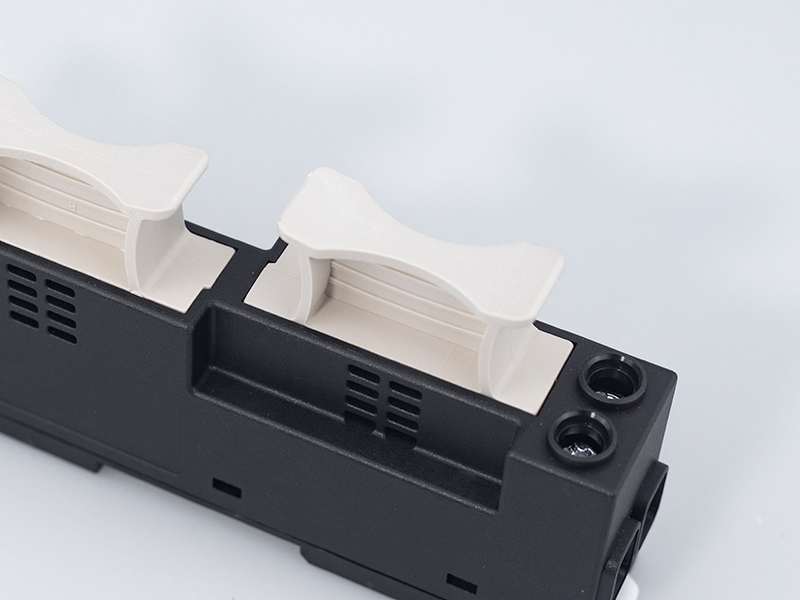

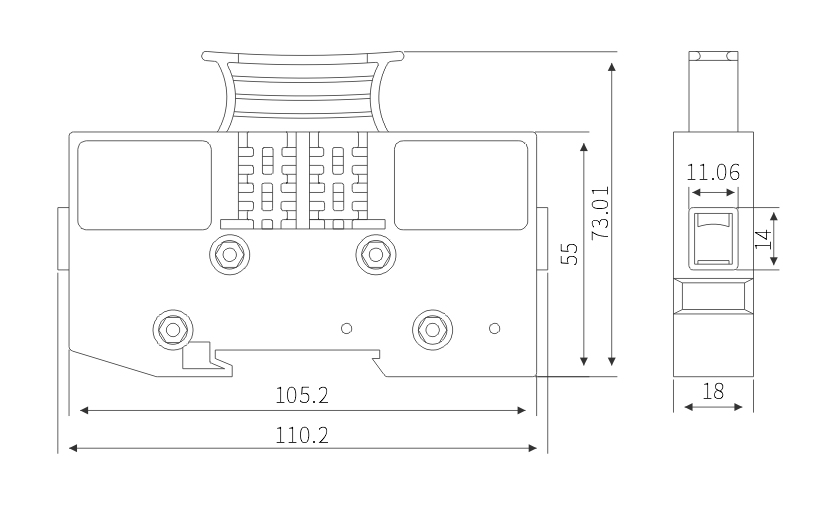

PV Fuse Holder, ARD-32/1500-N
  • Rated Voltage: 1500V, DC
  • Rated Current: 32A
  • Compatible Fuse Size: 10*65mm
  • Protection Classification: gPV
  • Enclosure Material: PA66
  • Temperature Resistance: -40 to 120°C
  • Enclosure Flame Rating: UL94-V0
  • Installation Support: Mounting Rail
  • Mounting Rail Size: TH35
  • Terminal Screw Torque: 2.5～3N.m
  • Conductor Cross-Section: 2.5～16mm²
  • Ipk Rated Peak Withstand Current: 20kA
  • Certification: TUV, CE, RoHS
  • Protective Treatment: TH
  • Storage Temperature: -40°C to 80°C
  • Standards: GB14048, IEC60269
PV Fuse Holder
PV Fuse Holder
PV Fuse Holder PV Fuse Holder PV Fuse Holder PV Fuse Holder PV Fuse Holder
Inquiry

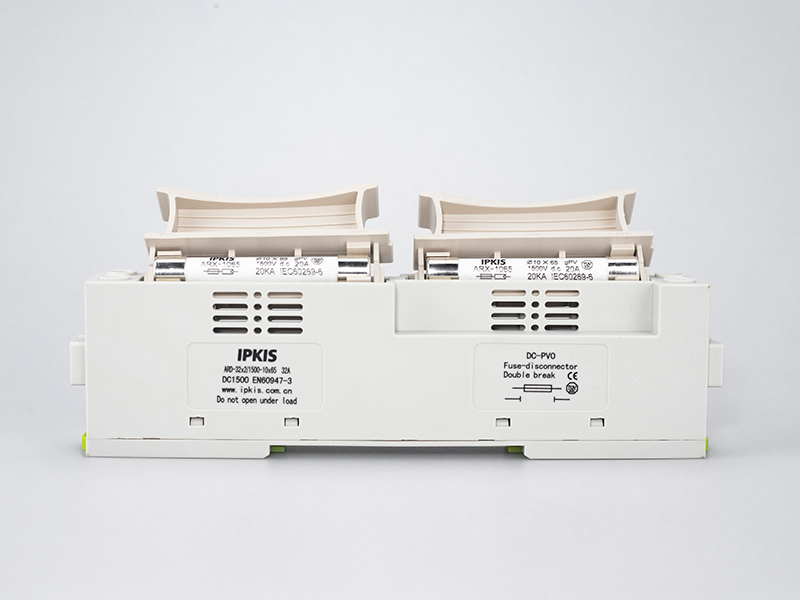

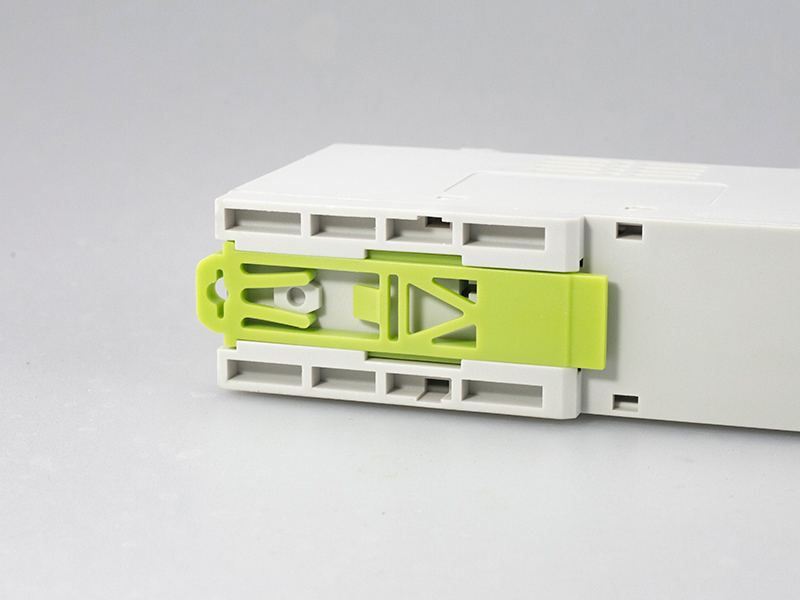

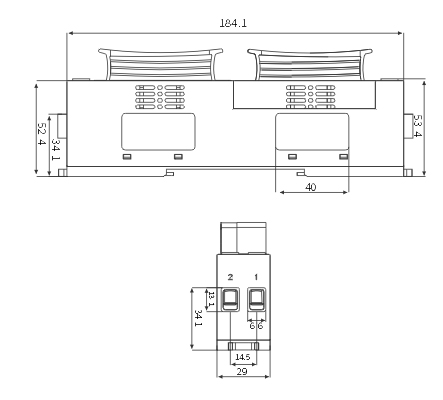

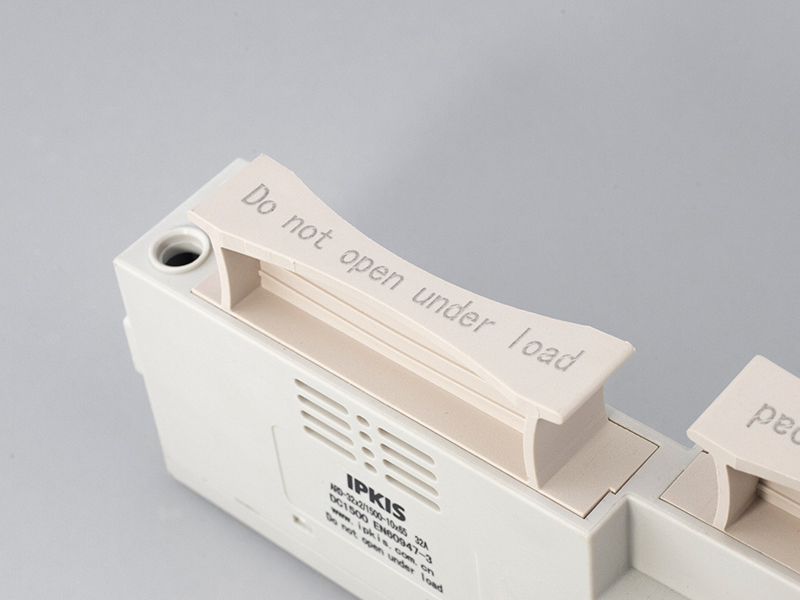

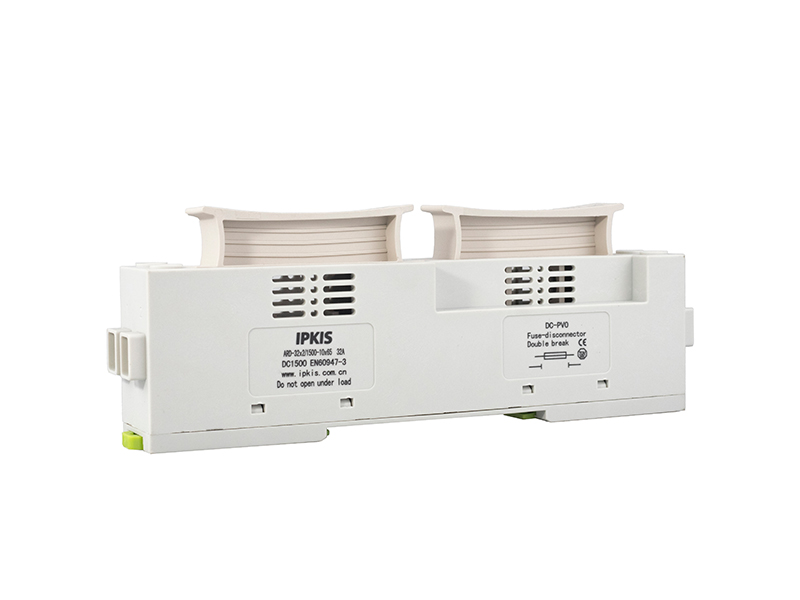

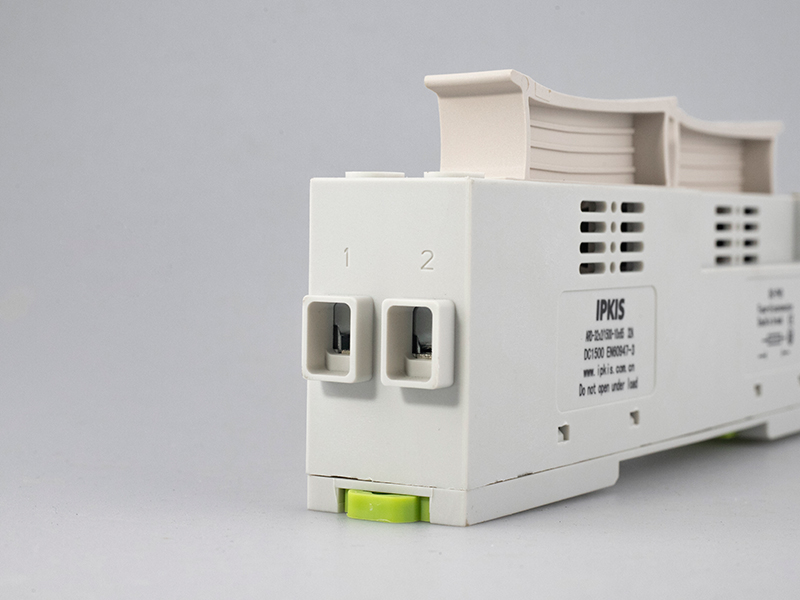

PV Fuse Holder, ARD-32X2/1500-65
  • Rated Voltage: 1500V, DC
  • Rated Current: 32A
  • Compatible Fuse Size: 10*65mm
  • Protection Classification: gPV
  • Enclosure Material: PA66
  • Temperature Resistance: -40 to 120°C
  • Enclosure Flame Rating: UL94-V0
  • Installation Support: Mounting Rail
  • Mounting Rail Size: TH75
  • Terminal Screw Torque: 2.5～3N.m
  • Conductor Cross-Section: 2.5～16mm²
  • Ipk Rated Peak Withstand Current: 20kA
  • Certification: TUV, CE, RoHS
  • Protective Treatment: TH
  • Storage Temperature: -40°C to 80°C
  • Standards: GB14048, IEC60269
PV Fuse Holder
PV Fuse Holder
PV Fuse Holder PV Fuse Holder PV Fuse Holder
Inquiry

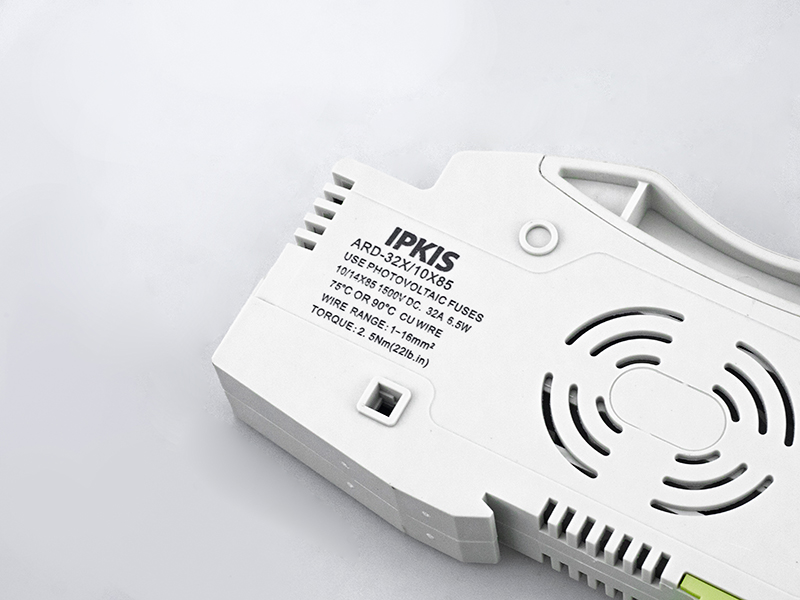

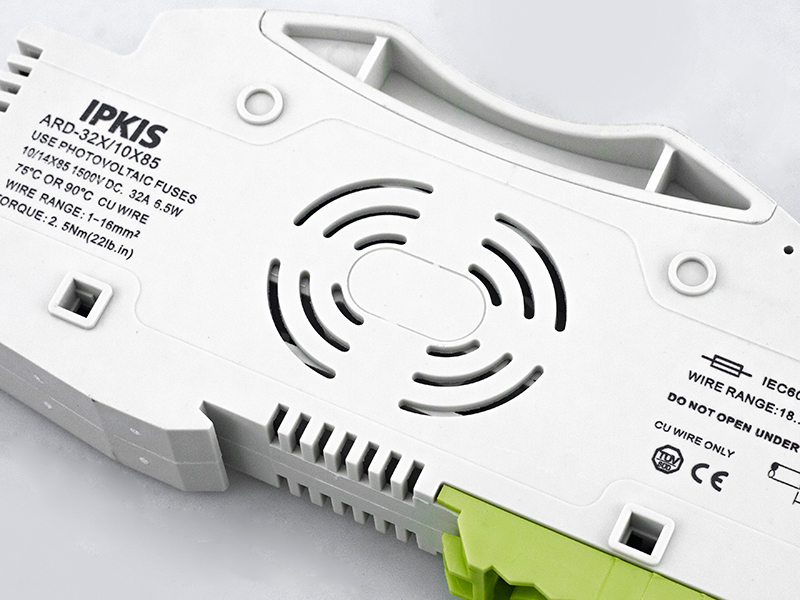

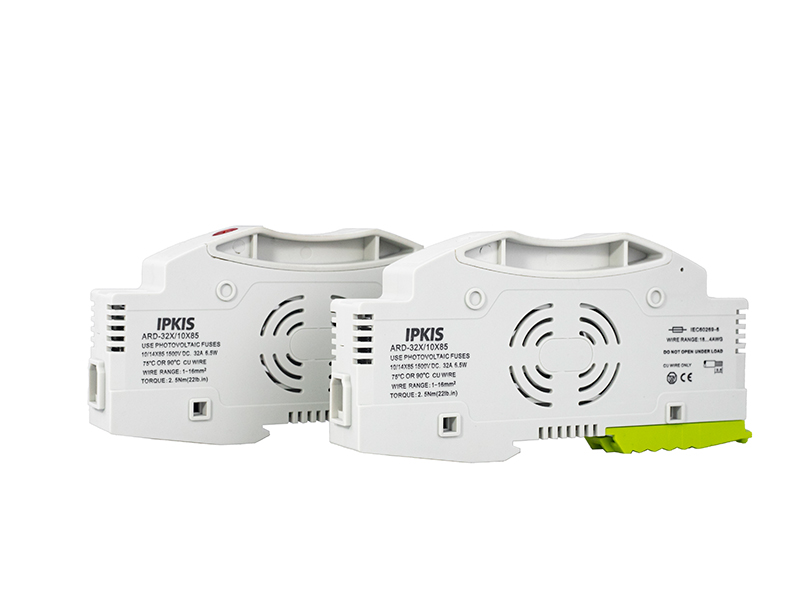

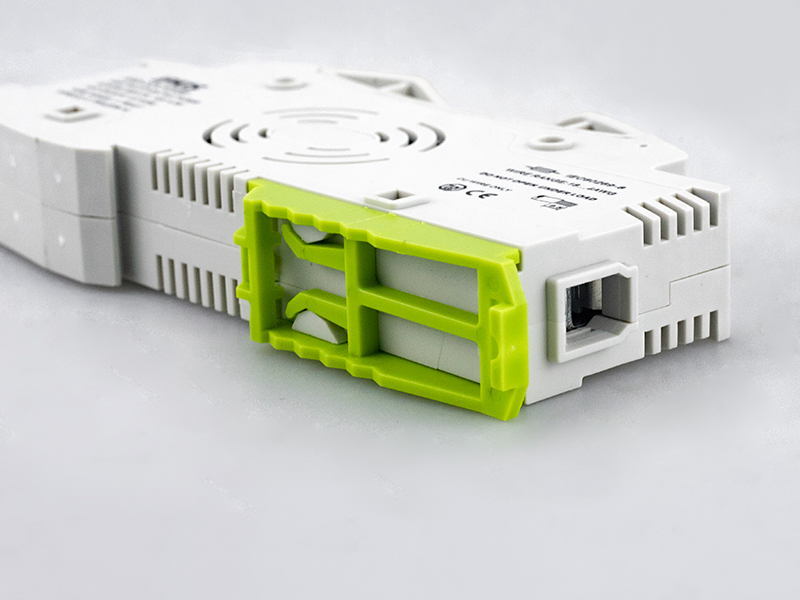

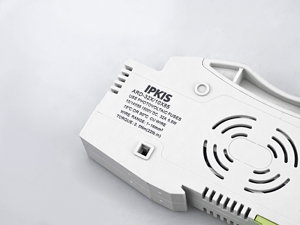

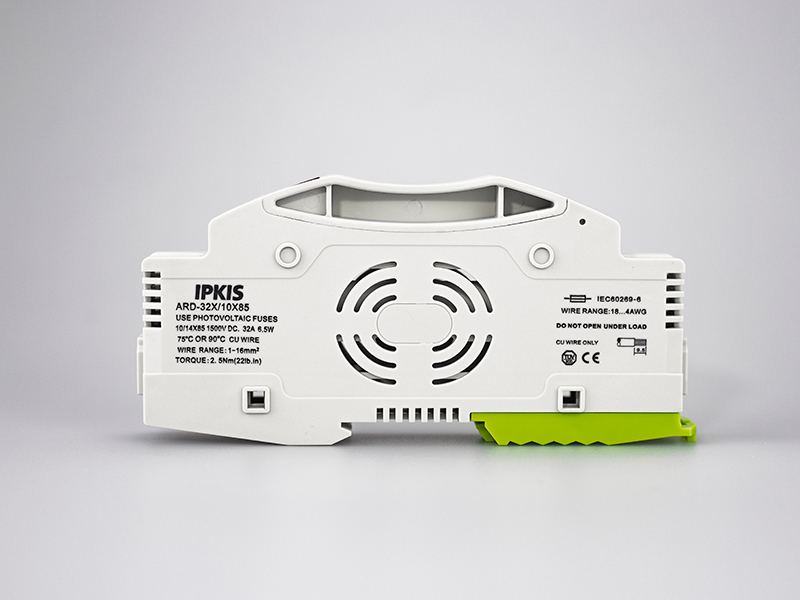

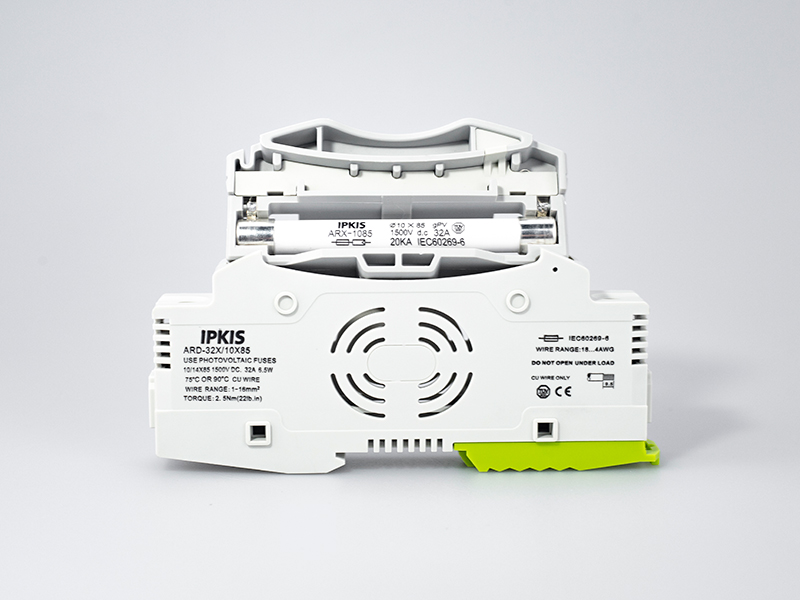

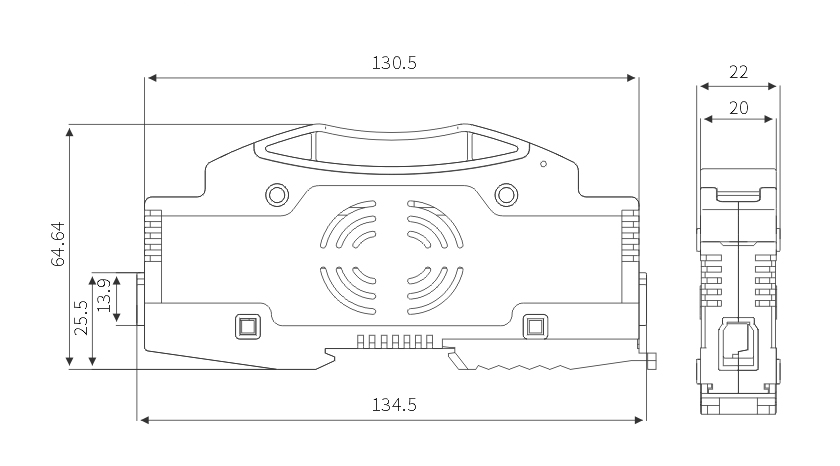

PV Fuse Holder, ARD-32B(X)/1500
  • Rated Voltage: 1500V, DC
  • Rated Current: 50A
  • Compatible Fuse Size: 10/14*85mm
  • Protection Classification: gPV
  • Enclosure Material: PA66
  • Temperature Resistance: -40 to 120°C
  • Enclosure Flame Rating: UL94-V0
  • Installation Support: Mounting Rail
  • Mounting Rail Size: TH35
  • Terminal Screw Torque: 2.5～3N.m
  • Conductor Cross-Section: 2.5～16mm²
  • Ipk Rated Peak Withstand Current: 20kA
  • Certification: TUV, CE, RoHS
  • Protective Treatment: TH
  • Storage Temperature: -40°C to 80°C
  • Standards: GB14048, IEC60269
PV Fuse Holder
  • PV Fuse Holder
  • PV Fuse Holder
  • PV Fuse Holder
  • PV Fuse Holder
Certification
  • CE Certificate
    CE Certificate
    Switches
    Fuse-disconnector
  • CE Certificate
    CE Certificate
    Switches
    Fuse-disconnector
  • CE Certificate
    CE Certificate
    Switches
    Fuse-disconnector
  • GTS Report of ARD-32B/1500
    GTS Report of ARD-32B/1500
More Power Accessories
FAQS
We specialize in providing accessories for photovoltaic systems, including PV combiner boxes, fiberglass plastic enclosures, DC fuses, solar connectors, and more.

Our photovoltaic accessories are mainly utilized in the solar energy sector, catering to solar power project contractors, manufacturers of photovoltaic distribution equipment, as well as traders in the field.

We have more than 20 years of experience in manufacturing photovoltaic distribution products.
Standard specifications are available for plastic enclosures, photovoltaic fuses, and solar connectors. On the other hand, AC/DC combiner boxes are customized based on distribution designs.
